SHEET MOLDING COMPOUND (SMC) Material Properties and Applications

Sheet Molding Compound (SMC) Provides a Better Molding Solution for Strength and Precision

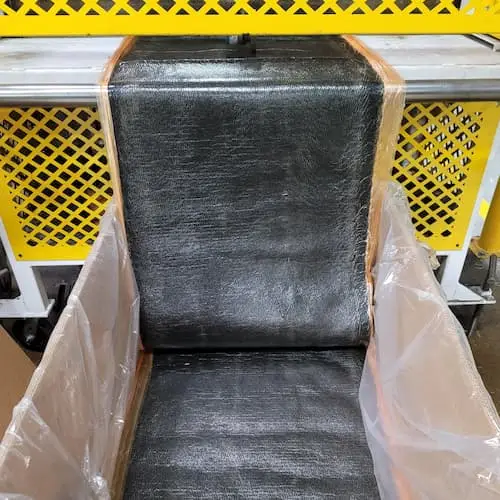

Sheet Molding Compound (SMC) has completely transformed the custom molding industry. This high quality composite material consists of resins, fiberglass, catalysts, and fillers. The material is pressed into sheets and then used for the manufacturing of compression-molded products. SMC has gained widespread popularity in the molding process offering advantages including high volume production capabilities, excellent part reproducibility, and cost-effectiveness.

Sheet molding compounds react to a wide range of temperatures based on the parent chemistry, reinforcement concentration, and filler/additives to the chemistry.

It comes in Polyester, Vinylester and Epoxy based chemistries, each offering unique physical properties. Epoxy based chemistries offer the highest strength to volume/mass/weight ratio while polyester and vinylester chemistries offering differing mechanical properties in three dimensional shapes. Sheet molding compounds have a variety of material reinforcements including woven or chopped fiberglass or carbon fiber. Of note, reinforcing media can vary in concentration and physical properties like length or woven patterns.

While generally compression molded, long glass SMC can be injection molded to achieve similar mechanical properties of short glass counterparts while reducing labor in each part.

However, achieving consistent results with SMC requires the skill and precision of an experienced thermoset molding company to ensure quality and repeatability at scale.

Understanding Sheet Molding Compound Composition

Sheet molding compound is composed of several essential components including resins, fiberglass, catalysts and fillers that make it an ideal material for molding. Each of these components play a critical role in making SMC a premier molding material for your next project.

1. Resins: Resins in SMC undergo a chemical change in the curing process which makes the material rigid and durable. These resins provide structural integrity to the molded parts.
2. Fiberglass: Fiberglass, in the form of short strands or mats, reinforces the material providing strength, stiffness, and impact resistance.
3. Catalysts: Catalysts are used to initiate and control the curing process of the resins. These catalysts ensures the SMC hardens properly during the compression molding process.
4. Fillers: Fillers are typically added to increase specific properties of SMC, such as flame resistance, thermal conductivity, or dimensional stability. Adding fillers, instead of resins, saves money on the production of the component.

What are the advantages of using Sheet Molding Compound?

1. High Volume Production: Parts can be created rapidly due to the low cure time. This speed in production is a preferred choice for industries with demanding production requirements.
2. Excellent Part Reproducibility: It is typically used in compression molding. The high-pressure manufacturing process forces the material to conform to the mold's contours, resulting in precise product dimensions.
3. Cost-Effective: SMC's composition allows for the precise distribution of reinforcement fibers, minimizing waste and reducing material costs. It also offers a lower cure time reducing labor costs and increasing efficiency.

BMC vs SMC vs Phenolic

Typical Applications for Sheet Molding Compound:

SMC is used to create parts for a wide range of industries and applications. Some of the typical applications where SMC is extensively used include:

1. Electrical Applications: It has excellent electrical insulation properties making it ideal for utilities, electrical components, switchgear, insulating barriers and more.
2. Corrosion-Resistant: SMC is resistant to corrosion making it an ideal choice for environments with exposure to moisture or chemicals. SMC is used to create components for wastewater treatment, chemical processing, and marine applications.
3. Low-Cost Structural Components: This material is especially useful in construction and infrastructure due to the strength and cost-effectiveness of the material.
4. Automotive: Produces parts that are lightweight, durable, and corrosion resistant. Some of the parts created with SMC includes bumpers, hoods, body panels, and even interior components.
5. Transit: SMC's ability to withstand harsh environmental conditions and its lightweight nature have made it a favored material for transit applications. SMC is used to make bus and train components, which ensures long service life of the transportation.

Sheet Molding Compound (SMC) is ideal for a wide range of applications due to its versatility and reliability. It has become an important material option for industries ranging from electrical and automotive to construction and transit. It is a common choice because of its unique composition, its high production efficiency, reproducibility, and cost-effectiveness.

As companies become more aware of this material option, Sheet Molding Compound is likely to play an even more significant role in shaping the future of the molding industry.
